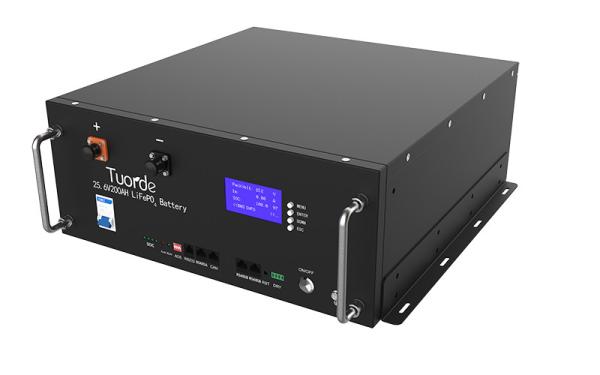

1S 5KWh Base Station Battery with Peak Discharge Current 100A and Nominal Voltage 25.6V

Name: 1S 5KWh Base Station Battery with Peak Discharge Current 100A and Nominal Voltage 256V
Brand: Tuorde
Price: 1 USD

Brand Name : Tuorde

Model Number : TRD-256200

Place of Origin : China

Certification : UN38.8/MSDS/CE

Nominal Voltage : 25.6 V

Nominal Capacity : 200Ah

Energy : 5120Wh

Recommended Charge Current : 30A

Maximum Continuous Discharge Current : 100A

Peak Discharge Current : 110A(1S)

Dimension : L442 X W460 X H177 mm

Discharge Temperature : -20 ~ 60 ºC

Contact Now

Technical Parameters:

No.	Item	Spec
1	Model No.	TRD-256200
2	Nominal Voltage	25.6V
3	Nominal Capacity	200Ah
4	Energy	5120Wh
5	Dimension	L442xW460xH177 mm
6	Weight	49 Kg
7	BMS Discharge Cut-Off Voltage	22.4V
8	BMS Charge Cut-Off Voltage	<29.2V
9	Communication Port	CAN/RS232/RS485
10	Working Temperature	-20°C ~ 60°C
11	Design life	10+Years(25°C/77°F)
12	Cycle Life	3000 cycles @80% DOD
13	Certification	CE/UN38.3
14	Maximum continuous charge current	100A
15	Maximum continuous discharge current	100A
16	Peak discharge current	110 A (1s)

Applications:

Tuorde Base Station Battery is the perfect solution for a wide range of applications and scenarios, including:

Telecommunication base stations
Radio and TV broadcasting stations
Wireless communication stations
Emergency communication systems
Rural electrification projects
Off-grid power supply for remote areas

With its high capacity and stable performance, our battery can provide uninterrupted power supply for your base station, ensuring smooth communication and operation. Whether it's for emergency situations or daily use, Tuorde Base Station Battery is the reliable power source you can count on.
