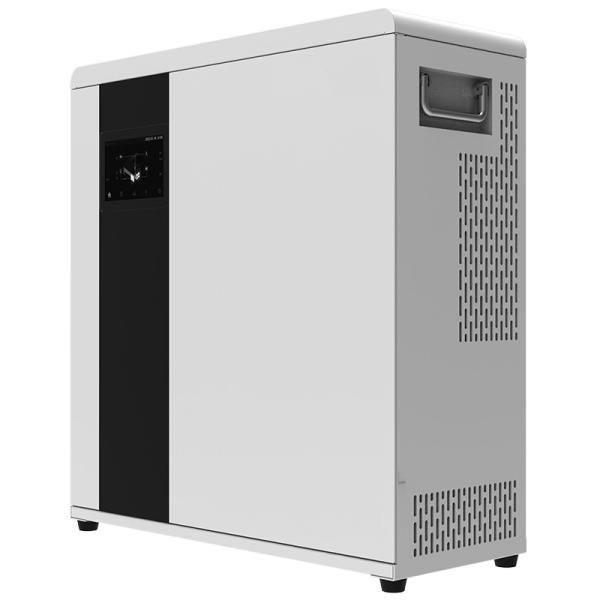

51.2V 100Ah 5KWh LFP ESS Battery Storage All in one energy storage system

Product Categories

Shenzhen Tuorde Energy Co., Ltd

Contact Now

Name: 512V 100Ah 5KWh LFP ESS Battery Storage All in one energy storage system
Brand: Tuorde
Price: 1 USD

Brand Name : Tuorde

Model Number : TRD-Plus-50EA

Certification : CE,UN38.3,TUV mark

Place of Origin : China

Name : All In One energy storage system

Voltage : 51.2V

Capacity : 100Ah

Max.Discharge Current : 110A

Dimensions : 585*611*230mm

Operating Temperature : -10℃~50℃

Storage Temperature : -15℃~60℃

Protection : Overcharge, Overdischarge, Short Circuit, Overcurrent

Warranty : 5 Years

Weight : 62kg

Application : Solar System, UPS, residential energy storage system

Contact Now

Tuorde Factory All-in-one RD-Plus-50EA

RD Serise Off-Grid Energy Storage System
Model	TRD-Plus-35EA	TRD-Plus-50EA
Battery
Rated voltage	51.2V
Voltage range	44.8~57.6V
Capacity	5.12kWh
Max.Discharge Curent	80A	110A
Max.Charge Curent	80A	80A
Battery type	LFP
AC Output(Backup)
Rated power	3500W	5000W
Rated output voltage	208/220/230/240V
Max.output curent	16A	22.7A
Rated Curren	15.2A	21.7A
Rated frequency	50V60Hz
THDv	<3%
Peak Efficiency(Battery Mode)	>92%
Output type	Pluggable connector
AC Input
Input Sources	L+N+PE
AC Input Voltage Range	154~264V
Rated Input Voltage	208/220/230/240V
AC input frequency	50/60Hz(Auto Adaptive)
PV Input
Max PV Input Power	4500W	6000W
Max.PV Input Voltage	450V
MPPT Voltage Range	120~430V
Max.DC Input Curent	18A
Max.DC Short Circuit Current	20A
Number of independent MPPT trackers	1
No.of PV strings per MPPT trackers	1
General Data
Range of working temperature	0°C-50°C(Charge)/-10°C-50°C(Discharge)
Storage temperature	15℃-60℃
Humidt	20-95%
Codling strategy	Fan
Atitude	<1000m
Weight	62kg
Dimension [Wx Hx D]	585611230mm
Enclosure protection rating	IP20
Communication	Wi-Fi (Optional)
Certificate
Certificate	CE,UN38.3,TUV mark

51.2V 100Ah 5KWh LFP ESS Battery Storage All in one energy storage system
